import contextily as ctxOrigin-destination data generation and routing with Python
1 Setup
We begin by loading the required Python libraries.
2 Choose a City
Select a city to analyze. We use Pamplona, Navarre, Spain by default so we can validate the results against our actual Spanish OD daily dataset.
# You can change this to other cities (e.g. "Kyiv", "Lviv", "Dnipro", "Donetsk", "Luhansk")
city = "Pamplona, Navarre, Spain"
print("You have selected:", city)3 Estimate an Origin-Destination (OD) Matrix
We divide the study area into a 12x12 grid and download the network and points of interest (POIs) from OpenStreetMap.
# Radius around the city centre to include (metres)
RADIUS_M = 5000
# Number of grid cells in each direction (total zones = X × Y)
NUM_X_BLOCKS = 12
NUM_Y_BLOCKS = 12
# Where to save outputs
OUTPUT_DIR = "./grid2demand_output"3.1 Download road network and POIs
We geocode the city centre coordinates and download the road network and POIs.
print(f"Locating city centre for: {city}")
city_boundary = ox.geocode_to_gdf(city)
city_boundary_proj = city_boundary.to_crs(city_boundary.estimate_utm_crs())
city_centre_proj = city_boundary_proj.geometry.centroid.iloc[0]
city_centre = (
gpd.GeoSeries([city_centre_proj], crs=city_boundary_proj.crs)
.to_crs(city_boundary.crs)
.iloc[0]
)
latitude = city_centre.y
longitude = city_centre.x
print(f"City centre found: {latitude:.4f}°N, {longitude:.4f}°E")
print("Downloading road network...")
G = ox.graph_from_point(
(latitude, longitude),
dist=RADIUS_M,
network_type="drive",
simplify=False
)
print("Road network downloaded.")
print("Downloading points of interest...")
poi_gdf = ox.features_from_point(
(latitude, longitude),
tags={"amenity": True, "shop": True, "leisure": True,
"tourism": True, "office": True},
dist=RADIUS_M
)
poi_gdf = poi_gdf.reset_index(drop=True)
poi_gdf = poi_gdf[poi_gdf.geometry.notnull()].copy()
print(f"Downloaded {len(poi_gdf):,} POIs.")3.2 Convert network and set up zones
We convert the road network to GMNS format and set up the grid zones.
osm_file = "study_area.osm"
print("Exporting network to OSM file...")
ox.save_graph_xml(G, filepath=osm_file)
print("Simplifying graph for routing...")
G = ox.simplify_graph(G)
print("Converting to GMNS format...")
network = og.getNetFromFile(osm_file, POI=False)
gmns_temp_dir = tempfile.mkdtemp()
og.outputNetToCSV(network, output_folder=gmns_temp_dir)
print("GMNS network created.")
# Build and inject POI file
geoms = poi_gdf.geometry
n = len(poi_gdf)
poi_df = pd.DataFrame({
"poi_id": np.arange(n),
"geometry": [g.wkt for g in geoms],
"centroid": [g.centroid.wkt for g in geoms],
"area": [g.area for g in geoms],
"building": poi_gdf["building"].fillna("").astype(str) if "building" in poi_gdf.columns else "",
"amenity": poi_gdf["amenity"].fillna("").astype(str) if "amenity" in poi_gdf.columns else "",
})[["poi_id", "building", "amenity", "centroid", "area", "geometry"]]
poi_df.to_csv(os.path.join(gmns_temp_dir, "poi.csv"), index=False)
print(f"POI file written ({n:,} features).")
print("Loading grid2demand...")
g2d = gd.GRID2DEMAND(input_dir=gmns_temp_dir, verbose=True)
if not hasattr(g2d, "map_mapping_between_zone_and_node_poi"):
g2d.map_mapping_between_zone_and_node_poi = g2d.map_zone_node_poi
g2d.load_network()
g2d.net2grid(num_x_blocks=NUM_X_BLOCKS, num_y_blocks=NUM_Y_BLOCKS)
g2d.taz2zone()
print("Zones created.")3.3 Run the gravity model and save results
We estimate trip volumes using the gravity model.
print("Running gravity model...")
g2d.map_zone_node_poi()
g2d.calc_zone_od_distance()
demand_df = g2d.run_gravity_model()
print("Gravity model complete.")
os.makedirs(OUTPUT_DIR, exist_ok=True)
g2d.save_results_to_csv(
output_dir=OUTPUT_DIR,
demand=True, zone=True, node=True, poi=True,
demand_od_matrix=True, overwrite_file=True
)
print(f"Results saved to: {OUTPUT_DIR}")
demand_matrix = pd.read_csv(os.path.join(OUTPUT_DIR, "demand.csv"))
print(f"\nOD matrix shape: {demand_matrix.shape[0]:,} rows × {demand_matrix.shape[1]} columns")4 Visualise the OD Matrix

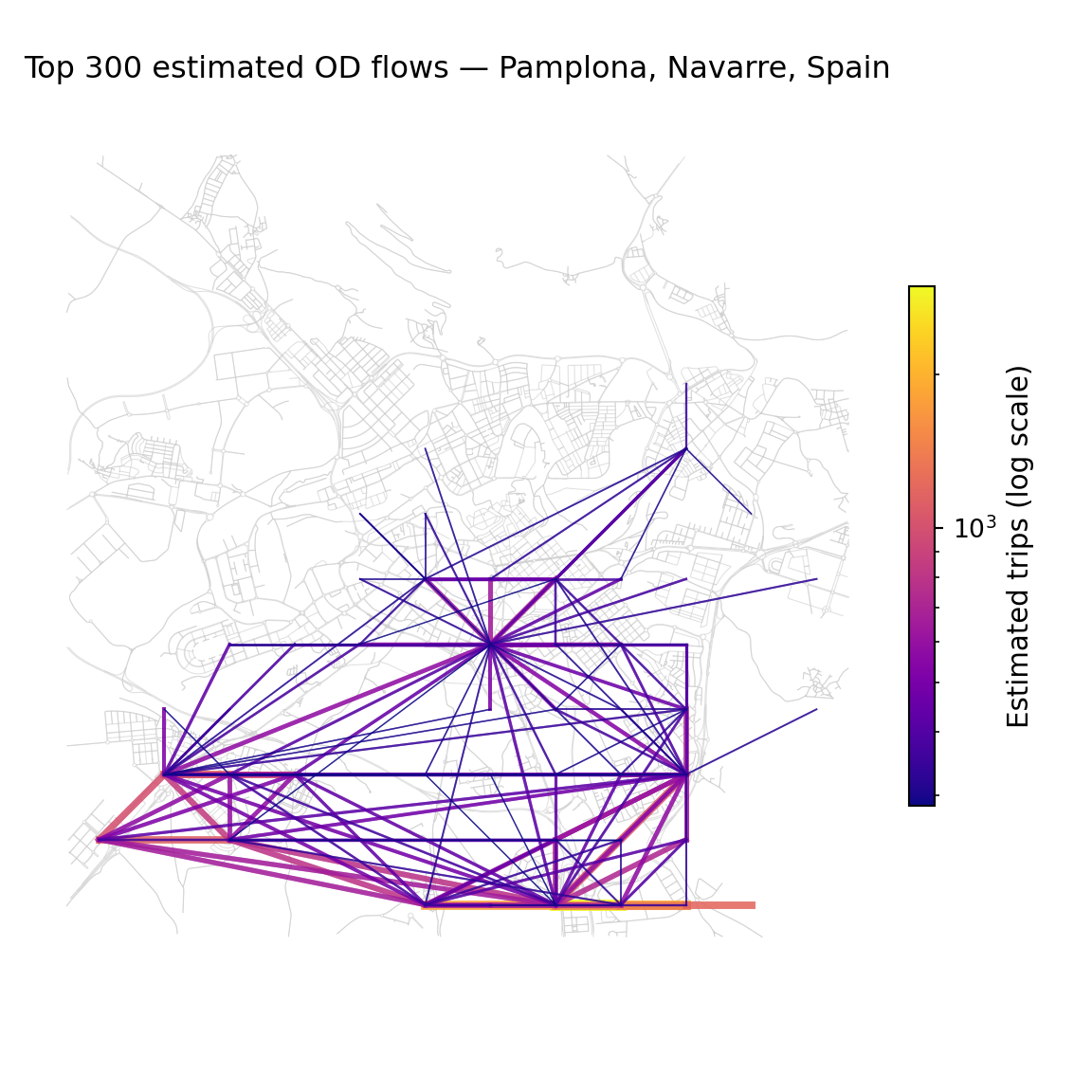

We construct desire lines to show travel demand patterns.
TOP_N_FLOWS = 300
# Load zone geometry
zone_gdf = gpd.read_file(os.path.join(OUTPUT_DIR, "zone.csv"))
zone_gdf["centroid_lon"] = zone_gdf["centroid"].apply(lambda x: wkt.loads(x).x)
zone_gdf["centroid_lat"] = zone_gdf["centroid"].apply(lambda x: wkt.loads(x).y)
zone_centroids = zone_gdf.set_index("zone_id")[["centroid_lon", "centroid_lat"]]
zone_centroids.index = zone_centroids.index.astype(int)
top_flows = (
demand_matrix[demand_matrix["volume"] > 0]
.sort_values("volume", ascending=False)
.head(TOP_N_FLOWS)
.copy()
)
top_flows["o_zone_id"] = top_flows["o_zone_id"].astype(int)
top_flows["d_zone_id"] = top_flows["d_zone_id"].astype(int)
lines = []
for _, row in top_flows.iterrows():
try:
o = zone_centroids.loc[row["o_zone_id"]]
d = zone_centroids.loc[row["d_zone_id"]]
lines.append(LineString([(o["centroid_lon"], o["centroid_lat"]),
(d["centroid_lon"], d["centroid_lat"])]))
except KeyError:
lines.append(None)
top_flows["geometry"] = lines
desire_lines = gpd.GeoDataFrame(
top_flows.dropna(subset=["geometry"]),
geometry="geometry",
crs="EPSG:4326"
)
edges = ox.graph_to_gdfs(G, nodes=False, edges=True)
vmin = desire_lines["volume"].min()
vmax = desire_lines["volume"].max()
norm = mcolors.LogNorm(vmin=vmin, vmax=vmax)
cmap = cm.plasma
fig, ax = plt.subplots(figsize=(6, 6))
edges.plot(ax=ax, color="#cccccc", linewidth=0.4, alpha=0.6)
for _, row in desire_lines.iterrows():
weight = norm(row["volume"])
ax.plot(
*row["geometry"].xy,
color=cmap(weight),
linewidth=0.5 + weight * 4,
alpha=0.65
)
sm = cm.ScalarMappable(cmap=cmap, norm=norm)
sm.set_array([])
cbar = fig.colorbar(sm, ax=ax, shrink=0.5, pad=0.02)
cbar.set_label("Estimated trips (log scale)", fontsize=11)
ax.set_title(f"Top {TOP_N_FLOWS} estimated OD flows — {city}", fontsize=12, pad=15)
ax.set_axis_off()
plt.tight_layout()
plt.show()
5 Assign Traffic Flows to the Network
5.1 Project network and map zones to nodes
print("Projecting graph...")
G = ox.project_graph(G)
graph_crs = G.graph["crs"]
node_ids = np.array(list(G.nodes()))
node_coords = np.array([(G.nodes[n]["x"], G.nodes[n]["y"]) for n in node_ids])
tree = cKDTree(node_coords)
def nearest_node(coord):
_, idx = tree.query(coord)
return node_ids[idx]
print("Snapping zone centroids to network nodes...")
zone_node_map = {}
for zone_id, z in g2d.zone_dict.items():
geom = wkt.loads(z["centroid"])
geom_proj = (
gpd.GeoSeries([geom], crs="EPSG:4326")
.to_crs(graph_crs)
.iloc[0]
)
zone_node_map[zone_id] = nearest_node((geom_proj.x, geom_proj.y))
demand_df = demand_df.copy()
demand_df = demand_df[demand_df["volume"] > 0].copy()
demand_df["o_node"] = demand_df["o_zone_id"].map(zone_node_map)
demand_df["d_node"] = demand_df["d_zone_id"].map(zone_node_map)
demand_df = demand_df.dropna(subset=["o_node", "d_node"])
demand_df["o_node"] = demand_df["o_node"].astype(int)
demand_df["d_node"] = demand_df["d_node"].astype(int)5.2 Scale OD matrix to Pamplona population
Pamplona has a population of approximately 200,000. We assume 2.1 trips per resident per day.
total_population = 200000
TRIPS_PER_PERSON_PER_DAY = 2.1
target_trips = total_population * TRIPS_PER_PERSON_PER_DAY
raw_total = demand_df["volume"].sum()
scale_factor = target_trips / raw_total
demand_df["volume"] = demand_df["volume"] * scale_factor
print(f"Normalised total daily trips: {demand_df['volume'].sum():,.0f}")5.3 Route trips across the network
edge_flow = defaultdict(float)
od_groups = demand_df.groupby("o_node")
n_origins = len(od_groups)
print(f"Routing {n_origins} origin nodes...")
for i, (o_node, group) in enumerate(od_groups):
_, paths = nx.single_source_dijkstra(G, o_node, weight="length")
for _, row in group.iterrows():
d_node = row["d_node"]
volume = row["volume"]
if d_node not in paths:
continue
path = paths[d_node]
for u, v in zip(path[:-1], path[1:]):
if not G.has_edge(u, v):
continue
data = G[u][v]
k = min(data, key=lambda kk: data[kk].get("length", 1))
edge_flow[(u, v, k)] += volume
# Write flows back to graph edges
for u, v, k in G.edges(keys=True):
G[u][v][k]["flow"] = float(edge_flow.get((u, v, k), 0))5.4 Visualise traffic flows on street network
flows_raw = np.array([
data.get("flow", 0)
for _, _, _, data in G.edges(keys=True, data=True)
])
flows_log = np.log1p(flows_raw)
max_log = flows_log.max() if flows_log.max() > 0 else 1
norm_flows = flows_log / max_log
cmap = plt.cm.inferno
edge_colors = [cmap(f) for f in norm_flows]
fig, ax = ox.plot_graph(
G,
edge_color=edge_colors,
edge_linewidth=2,
node_size=0,
bgcolor="white",
show=False,
close=False
)

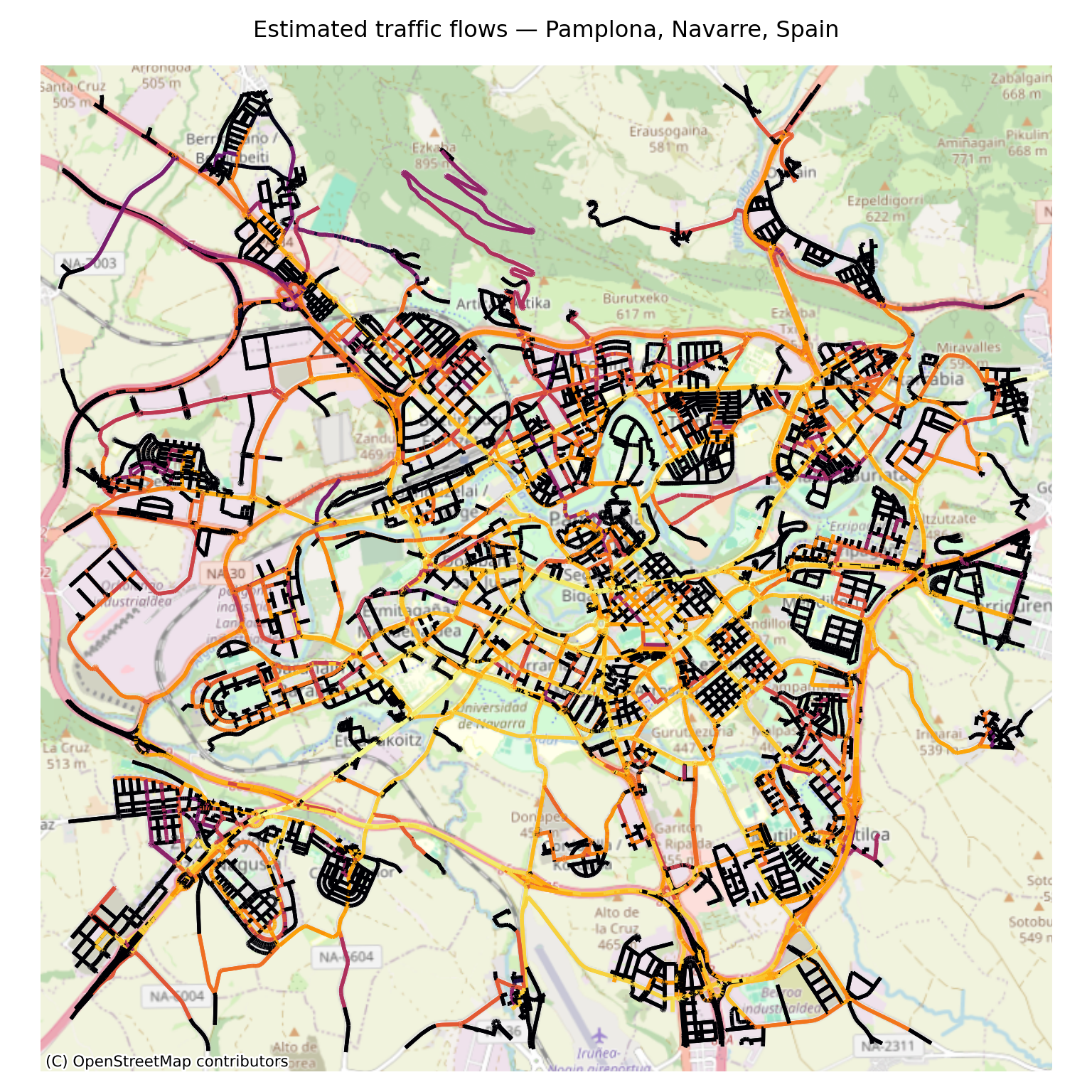

ax.set_title(f"Estimated traffic flows — {city}", fontsize=12, pad=15)
ctx.add_basemap(
ax,
crs=G.graph["crs"],
source=ctx.providers.OpenStreetMap.Mapnik,
alpha = 0.8
)
plt.tight_layout()
plt.show()
6 Validation against Real Daily Flows
Now, we perform the validation. We load the real daily flows and zone centroids extracted for Pamplona, map the centroids to our 12x12 grid2demand zones using a spatial join, aggregate the flows, and compute the correlation.
Exercise: what is the correlation between observed flows and the modelled flows using the approach outlined above?
How could it be improved?
# 1. Load Pamplona real zones
p_zones_df = pd.read_csv("pamplona_zones.csv")
p_zones_gdf = gpd.GeoDataFrame(
p_zones_df,
geometry=gpd.points_from_xy(p_zones_df["lon"], p_zones_df["lat"]),
crs="EPSG:4326"
)
# 2. Load grid2demand zones
g2d_zones = pd.read_csv(os.path.join(OUTPUT_DIR, "zone.csv"))
g2d_zones["geometry"] = g2d_zones["geometry"].apply(wkt.loads)
g2d_zones_gdf = gpd.GeoDataFrame(g2d_zones, geometry="geometry", crs="EPSG:4326")
# 3. Spatial join: Map Pamplona zones to grid2demand zones
joined = gpd.sjoin(p_zones_gdf, g2d_zones_gdf, how="inner", predicate="within")
zone_map = dict(zip(joined["id"].astype(str), joined["zone_id"].astype(int)))
# 4. Load Pamplona real flows and map to grid2demand zones
p_flows = pd.read_csv("pamplona_real_flows.csv")
p_flows["o_g2d"] = p_flows["origin"].astype(str).map(zone_map)
p_flows["d_g2d"] = p_flows["dest"].astype(str).map(zone_map)
p_flows = p_flows.dropna(subset=["o_g2d", "d_g2d"])
p_flows["o_g2d"] = p_flows["o_g2d"].astype(int)
p_flows["d_g2d"] = p_flows["d_g2d"].astype(int)
# 5. Aggregate real flows to grid cells
real_grid_flows = p_flows.groupby(["o_g2d", "d_g2d"])["daily_volume"].sum().reset_index()
# 6. Merge real flows with grid2demand gravity model outputs
demand_matrix = pd.read_csv(os.path.join(OUTPUT_DIR, "demand.csv"))
merged = pd.merge(
real_grid_flows,
demand_matrix,
left_on=["o_g2d", "d_g2d"],
right_on=["o_zone_id", "d_zone_id"],
how="inner"
)
# 7. Calculate correlation
corr_pearson = merged["daily_volume"].corr(merged["volume"], method="pearson")
corr_spearman = merged["daily_volume"].corr(merged["volume"], method="spearman")
print("=" * 45)
print(" GRAVITY MODEL VALIDATION RESULTS")
print("=" * 45)
print(f" {'Matched zone pairs:':<28} {len(merged):>6,}")
print(f" {'Pearson correlation:':<28} {corr_pearson:>6.4f}")
print(f" {'Spearman rank correlation:':<28} {corr_spearman:>6.4f}")
print("=" * 45)Reuse
